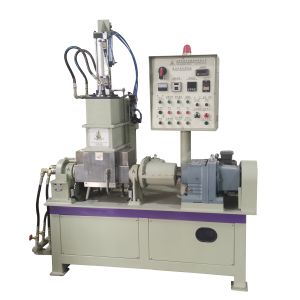

Custom 5L Low Price Wearproof Metal Powder Kneader
Product brief introduction
All parts of the mixer in contact with the feedstock—such as the chamber, side plate, hammer, and blade shaft—are treated with an ultra-durable, non-polluting tungsten carbide coating. The unit effectively stirs, disperses, and mixes metal powders and binder-based formulations under controlled temperature. After the mixture transforms into a paste-like mass, it is discharged on schedule for the next operation. It is regarded as an ideal choice for pilot production, testing, laboratory research, and teaching applications.
Technical Data
| | CF-1L | CF-2L | CF-3L | CF-5L | CF-10L | CF-15L |
| Capacity | L | 1 | 2 | 3 | 5 | 10 | 15 |
| Driving Motor Power | kw | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Tilting Motor Power | kw | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Speed of the Protor(Front/Rear) | r/min | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 |
| Air Compression Pressure | MPa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Net Weight | KG | 800 | 1000 | 1100 | 1500 | 2500 | 2600 |
Product Superiority
1. New powder leak-proof design,and easy to change or take out
2. New heating and cooling system,warming faster and good cooling performance.
3. When use for ceramic and metal industry,with utility model patents of our company,the insideof the contact part for the material is coated with ultra wear-resisting alloy,greatly increase the useful life.
Operating Principle
The two rotors in the mixing chamber rotate relative to each other under a certain speed ratio, clamping the material from the feeding port and bringing it into the roller gap to be squeezed and sheared by the rotors. After passing through the roller gap, it hits the sharp edge of the mixing chamber "W" and is divided into two parts, respectively along the gap between the front and rear chamber walls and the rotors and then returns to the top of the rotor. In the closed mixing chamber, the material is strongly sheared and mixed under certain pressure and temperature conditions, so that the formula materials are fully dispersed and plasticized, so that the formula can play the best effect.
Technical Advantage
1. Changfeng's anti-leakage powder device adopts mechanical shaft seal tightening technology and uses a self-lubricating seal ring to keep the seal ring in a compressed and sealed state during the mixing process. The self-lubricating seal ring can further reduce the wear of the mixing system and more effectively reduce the noise such as whistling caused by leakage and poor sealing.
2. This machine adopts a through-type heating system, which heats faster and transfers temperature more evenly, and is 50% more efficient than the traditional heating plate. And according to customer needs, a PLC program control system can be used.
3. The interior of the mixing chamber adopts a complex tube belt design, which has good heat exchange and precise temperature control. The rotor adopts water cooling to effectively prevent sticky materials, control temperature accurately, and make the material dispersion more even.
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
